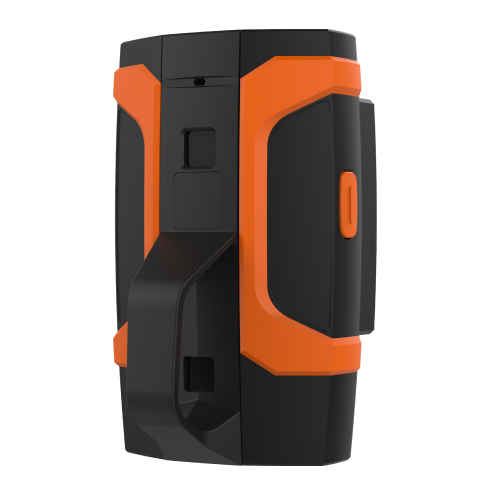

SAFE U Smart
safety belt

The system has an alert function by detecting that a harness is left unattended, the Smart Chin Strap Sensor and Smart Hook Sensor are not fastened. In thses cases, the warning alarm is sounded out of the Smart Belt and keeping them safety on the job.

  • Usage detection

    Detect usage on the basis of workers' behavioral data

  • Durability

    Field test over 1 year

  • Waterproof and dustproof

    Certified as IP65

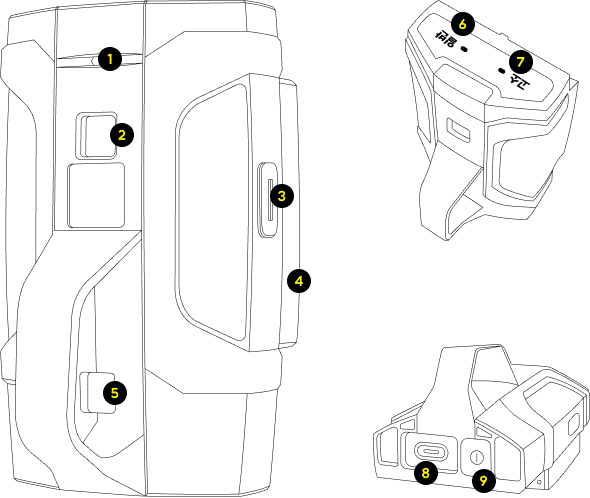

Parts name

  1. buzzer
  2. multifunctional LED
  3. side button
  4. bracket
  5. proximity sensor
  6. LED general work LED
  7. LED high-altitude work LED
  8. USB C charging
  9. power switch

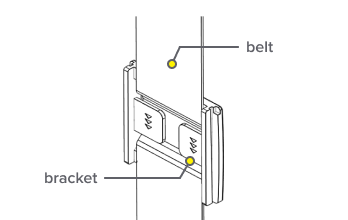

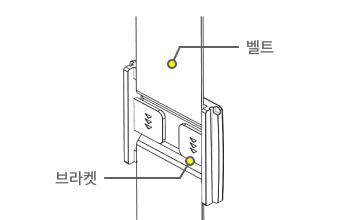

Mounting procedure

  1. STEP 1

    Insert the safety belt into bracket while arrow mark face downwards. Fold the safety belt in half and insert it into bracket.

  2. STEP 2

    Press the smart safety belt downward against the end of the bracket. When detaching, remove the safety belt first and then detach the smart safety belt.

Wearing position

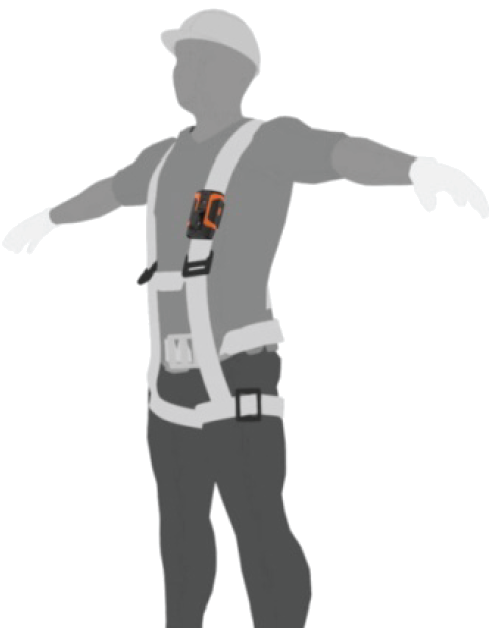

Chest Area

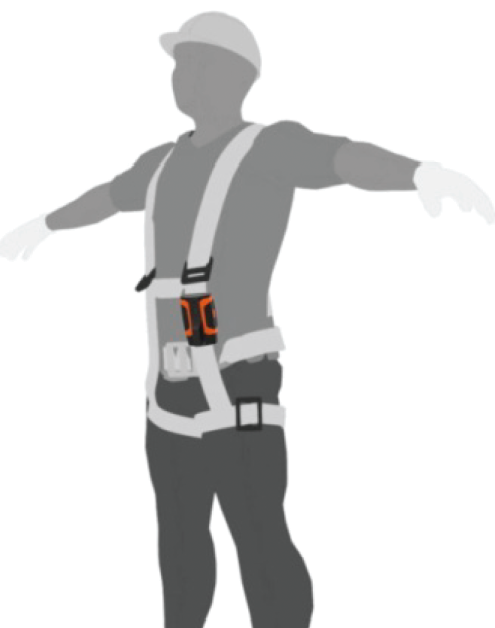

Flank Area

Specifications

  • Communication

    • Bluetooth v.5.0

  • Sensor

    • Accelerometer and worker algorithm

  • Waterproof and dustproof

    • IP65

  • Battery

    • Charging Type : C-Type, 2500 mAh Minimum Duration : 5 Days

  • Key features

    • Alarm activated when not in use
      Worker Tag
      SOS
      USB C charging

SAFE U
