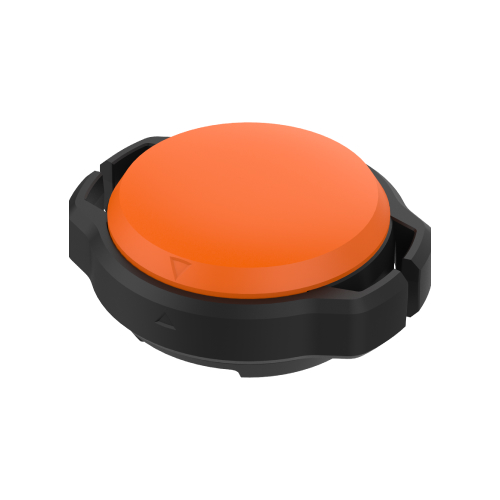

SAFE U Smart
chin strap

Monitor in real time whether workers are wearing their helmet chin straps and send an alarm in case of non-use or improper use of the helmet to protect the workers.

  • Usage detection

    Detect usage on the basis of workers' behavioral data

  • Durability

    Field test over 1 year

  • Waterproof and dustproof

    Certified as IP65

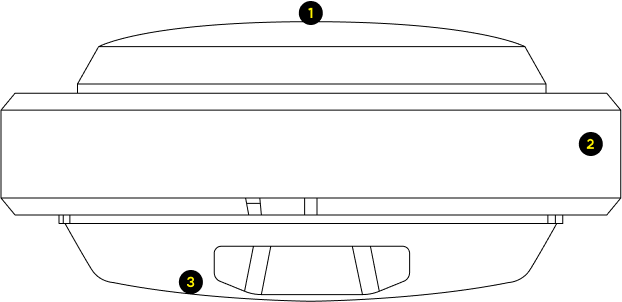

Parts name

  1. Capacitive sensor
  2. Chin strap bracket
  3. Rotate the underside to detach
    (CR2032 Battery replacement)

Mounting procedure

  1. STEP 1

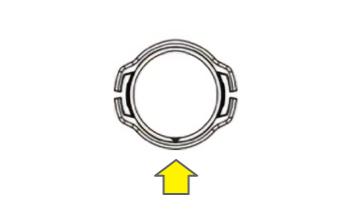

    Ensure that the side with the capacitive sensor makes contact with the chin.

  2. STEP 2

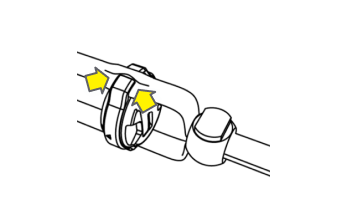

    Hold one side of chin strap and insert it into the bracket. Repeat the same process for the other side.

  3. STEP 3

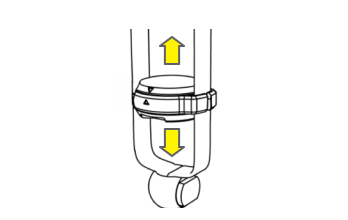

    Check to ensure that the chin strap sensor moves smoothly up and down.

Wearing position

Chin strap bottom

Side of chin strap

Specifications

  • Communication

    • Bluetooth v.5.0

  • Sensor

    • Accelerometer and worker algorithm

  • dustproof and Waterproof

    • IP65

  • Battery

    • Battery replacement method CR2032*1
      Battery life 60 days

  • Key features

    • Alarm activated when not in use

SAFE U
